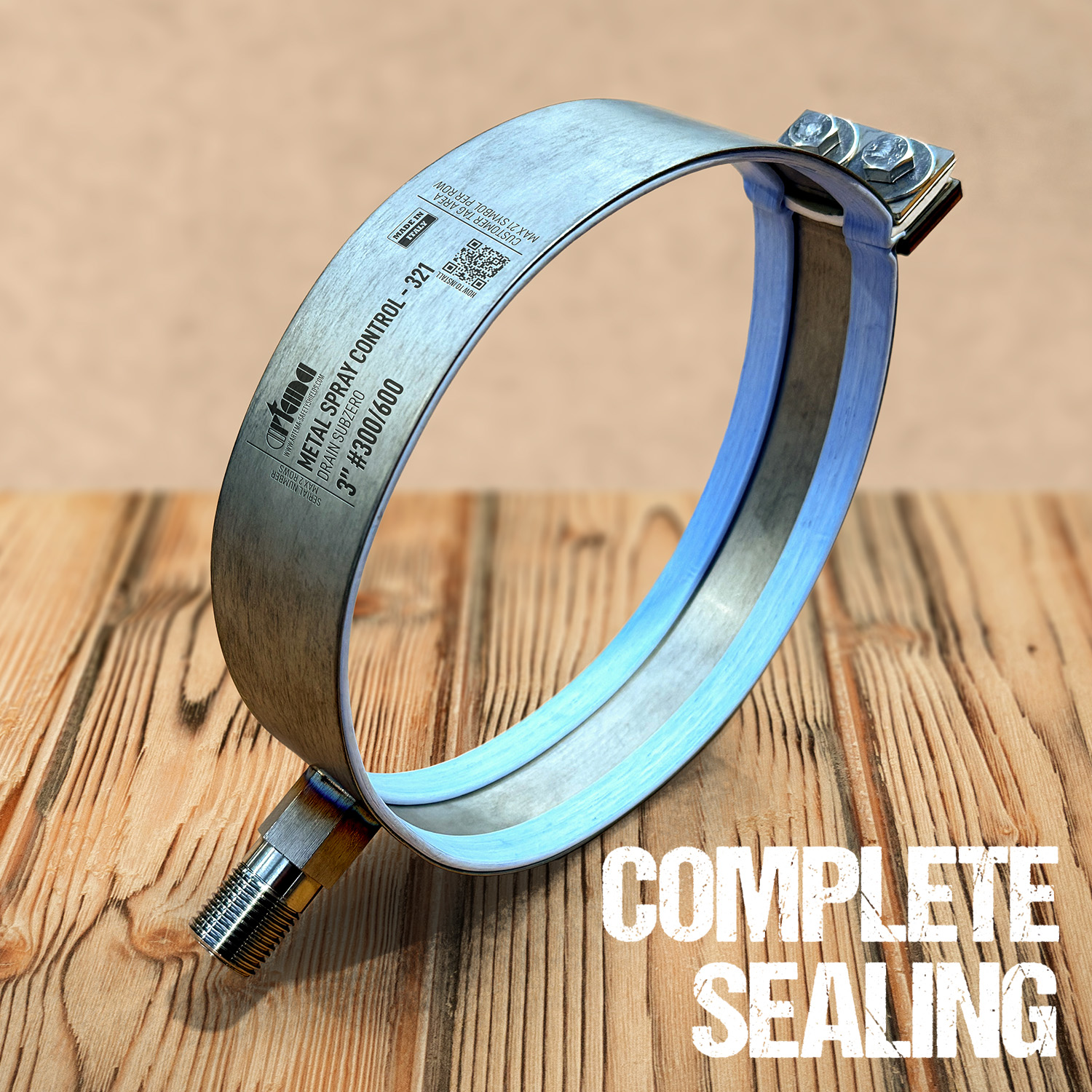

Flange guard MSC DRAIN SUBZERO
Maximum sealing for LNG-Hydrogen at cryogenic temperatures
The flange guard MSC DRAIN SUBZERO is designed for extreme environments, such as those involving LNG and hydrogen, operating even at cryogenic temperatures. The internal gasket (ARTEMA FlexBlue PRO) ensures maximum sealing, while the drain hose allows for effective conveying of leaked fluid in the case of a leak, directing it safely to a container, a collection basin, etc.
- Operating temperature: from -270 °C to +230 °C – perfect for cryogenic environments.
- Maximum sealing: against gas or liquid leaks thanks to the internal gasket ARTEMA FlexBlue PRO.
- High discharge capacity drain hose: enables efficient management of leaked fluids, keeping the work area safe.
- Ideal for LNG and hydrogen plants: ensures excellent performance in cryogenic temperature conditions.
- Automatic locking system: with use of electric screwdriver allows for very fast installation.
The flange guard MSC DRAIN SUBZERO is the perfect solution for those seeking reliability and top-level performance in cryogenic applications, with a design that optimizes fluid drainage operations and ensures long-term performance.
Maximum sealing
to protect the environment and people from LNG, hydrogen, or hazardous liquid leaks
Leak redirection
with the help of the drain hose to direct any leakage to a safe location
Cryogenic temperatures
on flanged joints, including insulated ones
LNG application
specifically designed for LNG production, transport, and storage operations
Sealing performance*
star_purple500star_purple500star_purple500star_purple500star_border Liquid chemicals
star_purple500star_purple500star_purple500star_purple500star_purple500 Gases
star_purple500star_purple500star_purple500star_purple500star_purple500 LNG
star_purple500star_purple500star_purple500star_borderstar_border LPG
star_purple500star_purple500star_purple500star_purple500star_purple500 Hydrogen
* indicative values. Contact us for more information.
- Do you need technical support?
- Contact our technical office: we will help you identify the most suitable solution for the operating conditions of your system.
Certificates
- BUREAU VERITAS certificate according to SOLAS 74 Ch.II-2, IMO MSC/Circ. 647, IMO MSC/Circ. 851, IMO MSC/Circ.1321, and ISO 18770:2005.
- Test report and laboratory certificate confirming protective effectiveness and drainage capacity.
Variants
Flange guard MSC DRAIN FLEX - V2
Maximum sealing for strong chemicals
The MSC DRAIN FLEX - V2 safety flange guard is resistant even to the most aggressive chemical fluids: liquid and gaseous. It to protects the environment and people from spills of chemically hazardous liquids and ensures maximum sealing thanks to the internal gasket and the discharge nozzle ("drain") for leaked fluid, allowing it to be directed to a safe location.
Liquid chemicals
star_border Gases
star_border LNG
star_borderstar_border LPG
star_borderstar_border Hydrogen
Flange guard MSC DRAIN PYRO - V2
Maximum sealing for Oil & Gas industry
The MSC DRAIN PYRO - V2 safety flange guard provides complete flange sealing due to its automatic rapid locking system and ARTEMA PYROTEX gasket tape. It helps to avoid dangerous Jet Fire phenomenon and protect the environment and people from hazardous spills of hydrocarbons or other flammable liquids.
star_borderstar_border Liquid chemicals
star_borderstar_border Gases
star_border LNG
LPG
star_borderstar_border Hydrogen
