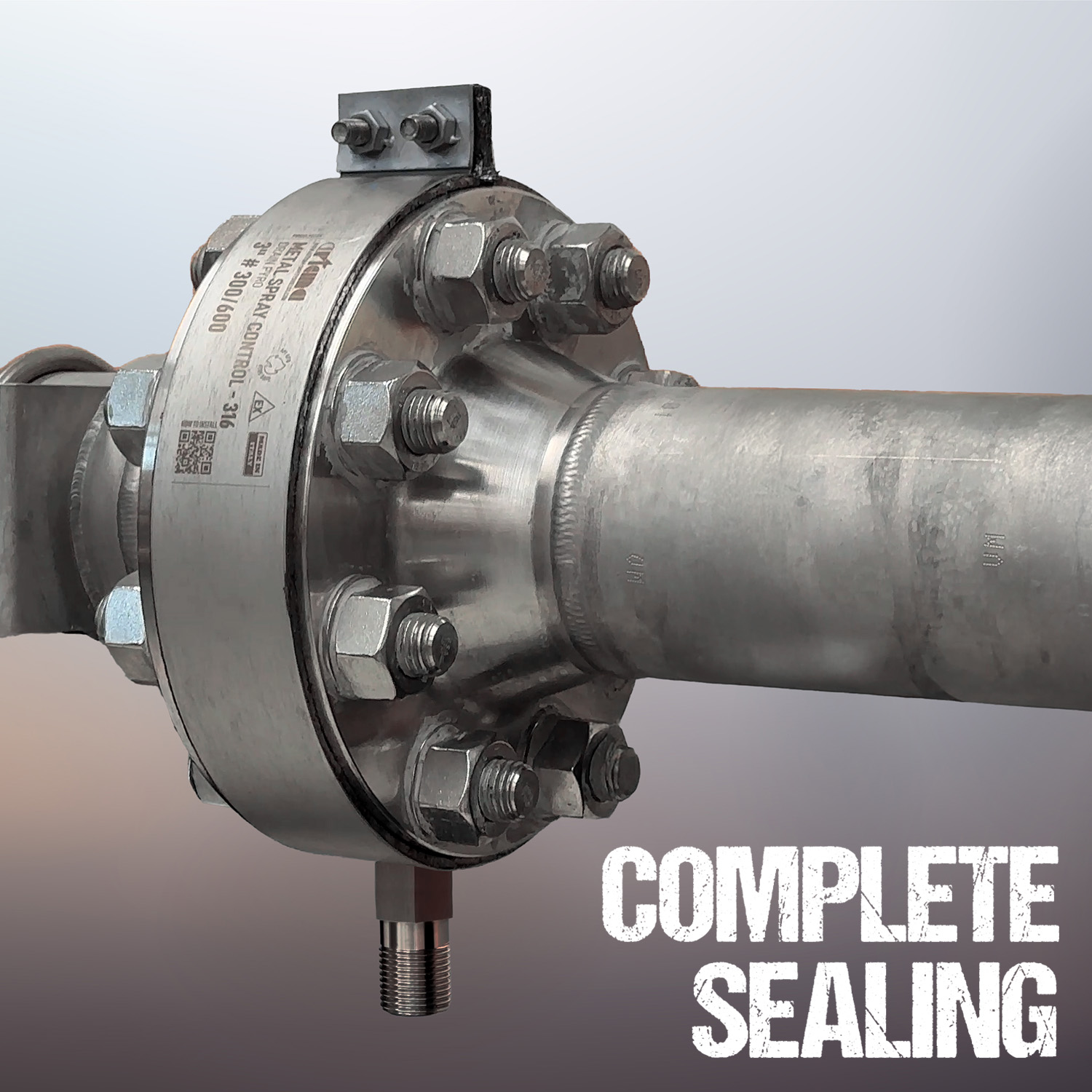

Flange guard MSC DRAIN PYRO - V2
Maximum sealing for Oil & Gas industry
The flange guard MSC DRAIN PYRO - V2 is suitable for installation in ATEX areas and resists extremely high temperature (up to +650 °C). Graphite gasket tape allows to provide complete sealing and the drain hose conveys the fluid in case of leakage.
- Operating temperature: from -196 °C to +650 °C – for very high temperature.
- Maximum sealing: against hydrocarbons or other flammable liquids leaks thanks to the internal gasket ARTEMA PyroTex.
- High discharge capacity drain hose: enables efficient management of leaked fluids, keeping the work area safe.
- Ideal for Oil & Gas plants: ensures excellent performance at high temperature and hydrocarbons applications.
- Automatic locking system: with use of electric screwdriver allows for very fast installation.
Maximum sealing
to protect the environment and people from hazardous spills of hydrocarbons or other flammable liquids
Leak redirection
with the help of the drainage nozzle to carry any leakage to a safe place
Jet Fire
protective efficacy against JET FIRE phenomenon
For ATEX areas
specifically designed for applications in ATEX areas
Sealing performance*
star_purple500star_purple500star_purple500star_borderstar_border Liquid chemicals
star_purple500star_purple500star_purple500star_borderstar_border Gases
star_purple500star_purple500star_purple500star_purple500star_border LNG
star_purple500star_purple500star_purple500star_purple500star_purple500 LPG
star_purple500star_purple500star_purple500star_borderstar_border Hydrogen
* indicative values. Contact us for more information.
- Do you need technical support?
- Contact our technical office: we will help you identify the most suitable solution for the operating conditions of your system.
Certificates
- BUREAU VERITAS certificate according to SOLAS 74 Ch.II-2, IMO MSC/Circ. 647, IMO MSC/Circ. 851, IMO MSC/Circ.1321, and ISO 18770:2005.
- ATEX compliant (European Directive 2014/34/EU) for zones with potentially explosive atmospheres 0-1-2 and 20-21-22.
- Test report and laboratory certificate confirming protective effectiveness and drainage capacity.
- Protective performance test against JET FIRE with RINA inspection report.
Variants
Flange guard METAL SPRAY CONTROL
Fire Safe for Oil & Gas
METAL SPRAY CONTROL is the stainless steel safety flange guard designed for the Oil & Gas industry, fire-resistant and capable of withstanding extreme temperatures: from -196 °C to +785 °C. Certified to API 6FB and Jet Fire standards.
star_purple500star_purple500star_borderstar_borderstar_border Caustic soda
star_borderstar_borderstar_borderstar_border Hydrochloric acid
star_borderstar_borderstar_border Sulfuric acid
star_borderstar_borderstar_borderstar_border Hydrofluoric acid
Hydrocarbons
star_border LNG-Hydrogen
Flange guard MSC DRAIN SUBZERO
Maximum LNG-Hydrogen sealing at cryogenic temperatures
The MSC DRAIN SUBZERO safety flange guard is ideal for LNG and hydrogen applications at cryogenic temperatures. It ensures maximum sealing thanks to the internal gasket and the discharge nozzle ("drain") for leaked fluid, allowing it to be directed to a safe location.
star_border Liquid chemicals
Gases
LNG
star_borderstar_border LPG
Hydrogen
